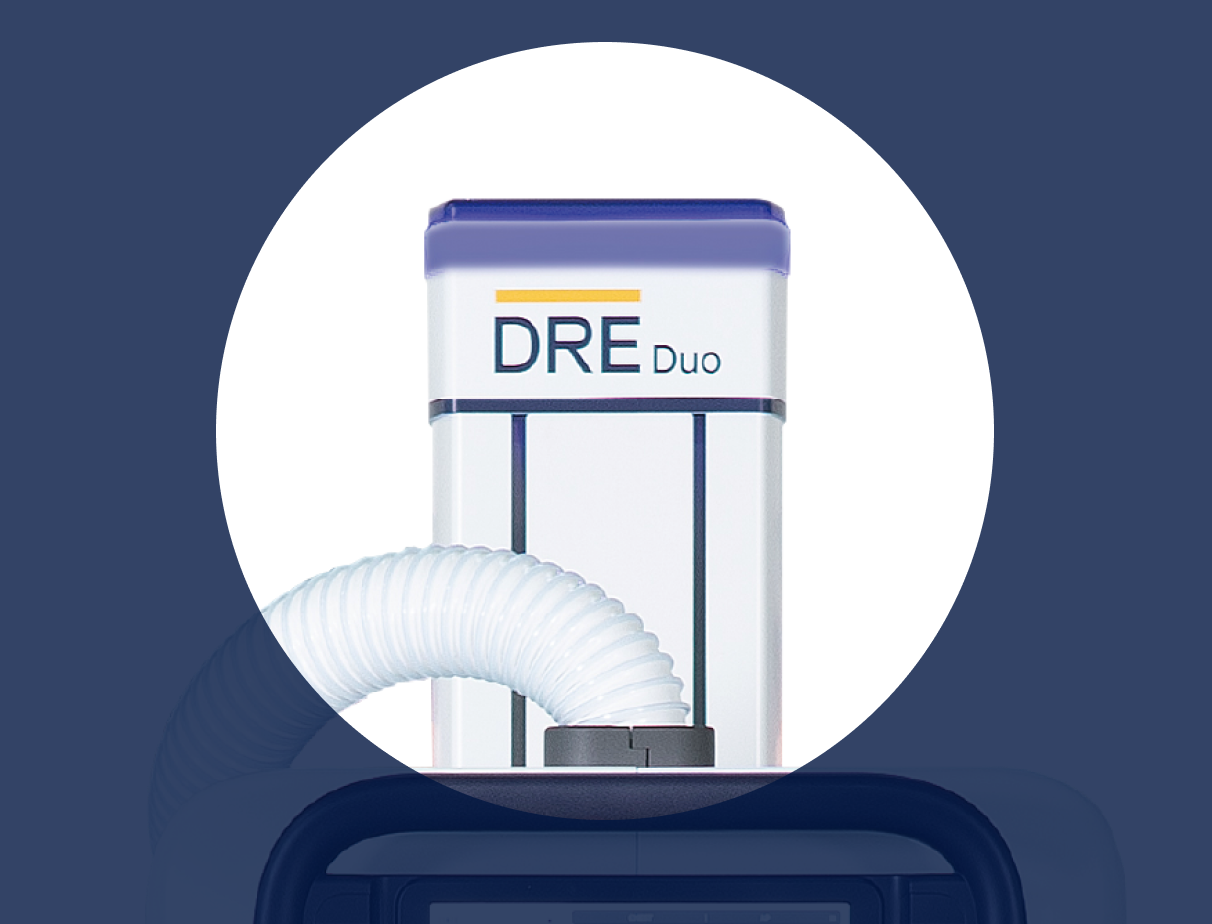

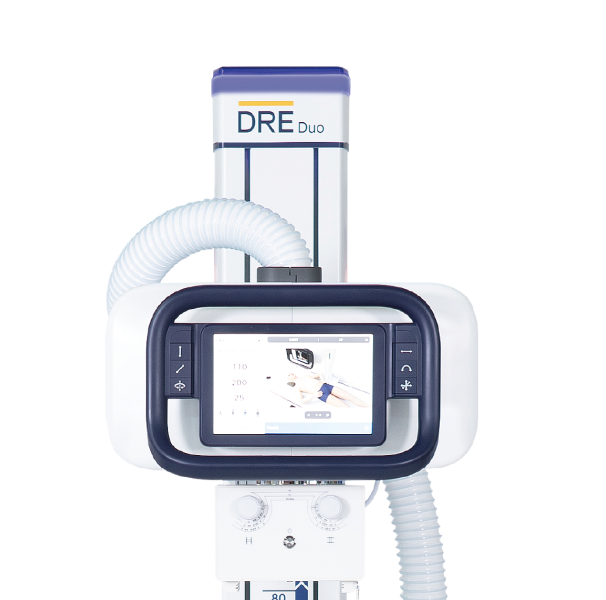

튜브 스탠드:
인체공학적으로 설계된 튜브 스탠드는 테이블 및 스탠드 검사를 위해 작업자에게 더 빠르고 쉬운 이동을 제공합니다.

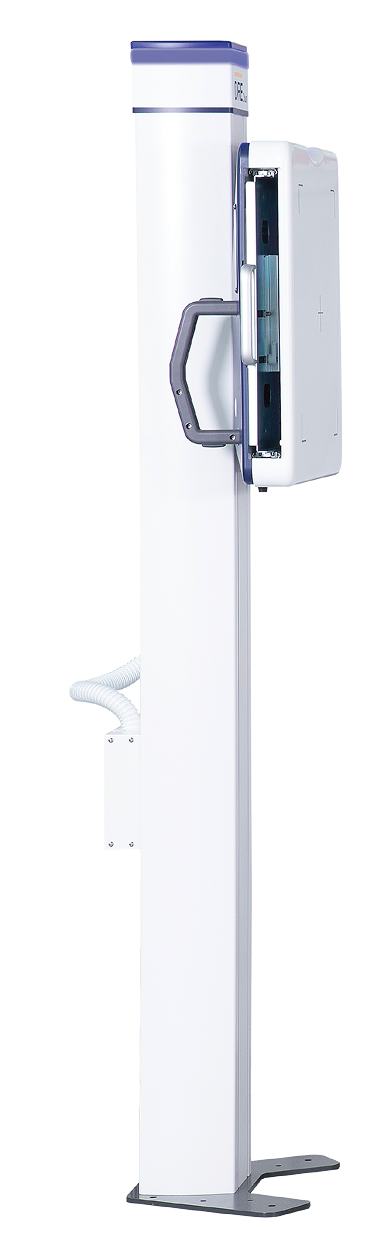

버키 스탠드:
넓은 수직 이동 범위(400 ~ 1,800mm)를 제공하여 경추부터 하지까지 노출이 가능합니다.

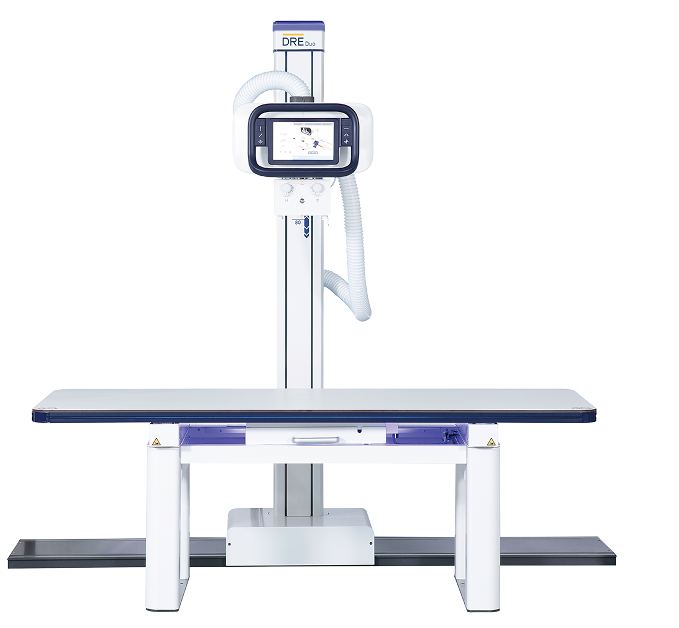

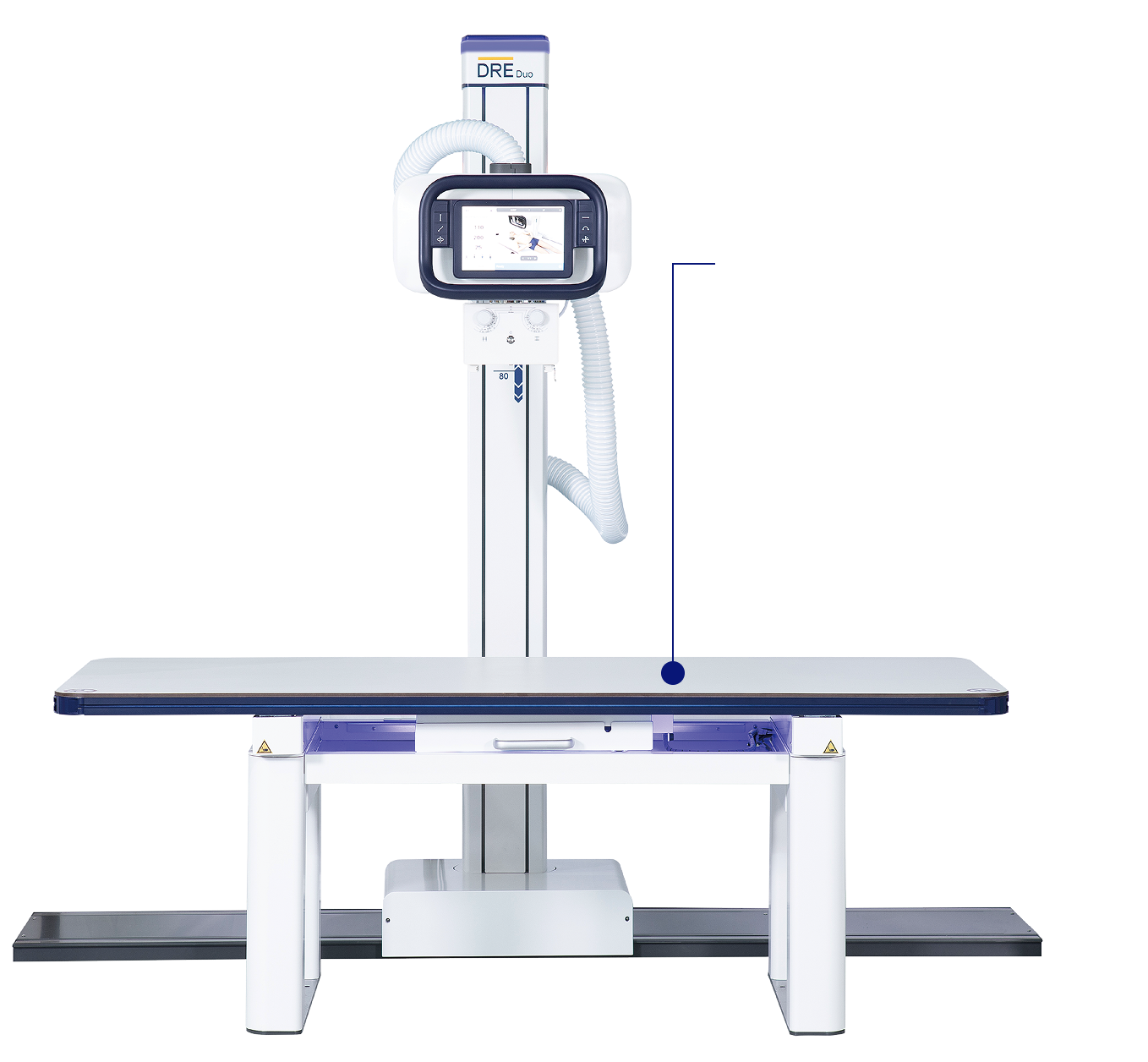

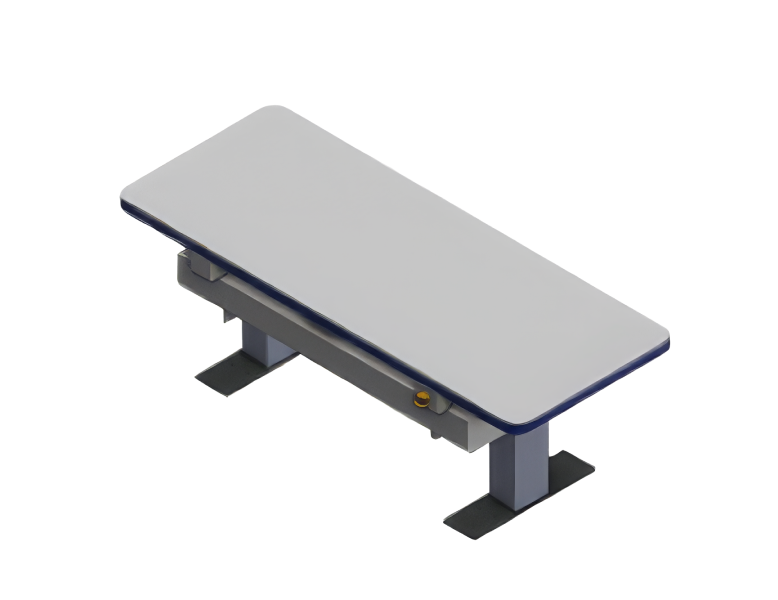

4방향 버키 테이블:
견고한 디자인으로 최대 150kg까지의 무게를 버틸 수 있으며, 비만 환자의 검사가 가능합니다.
; ?>){kind=spacer}

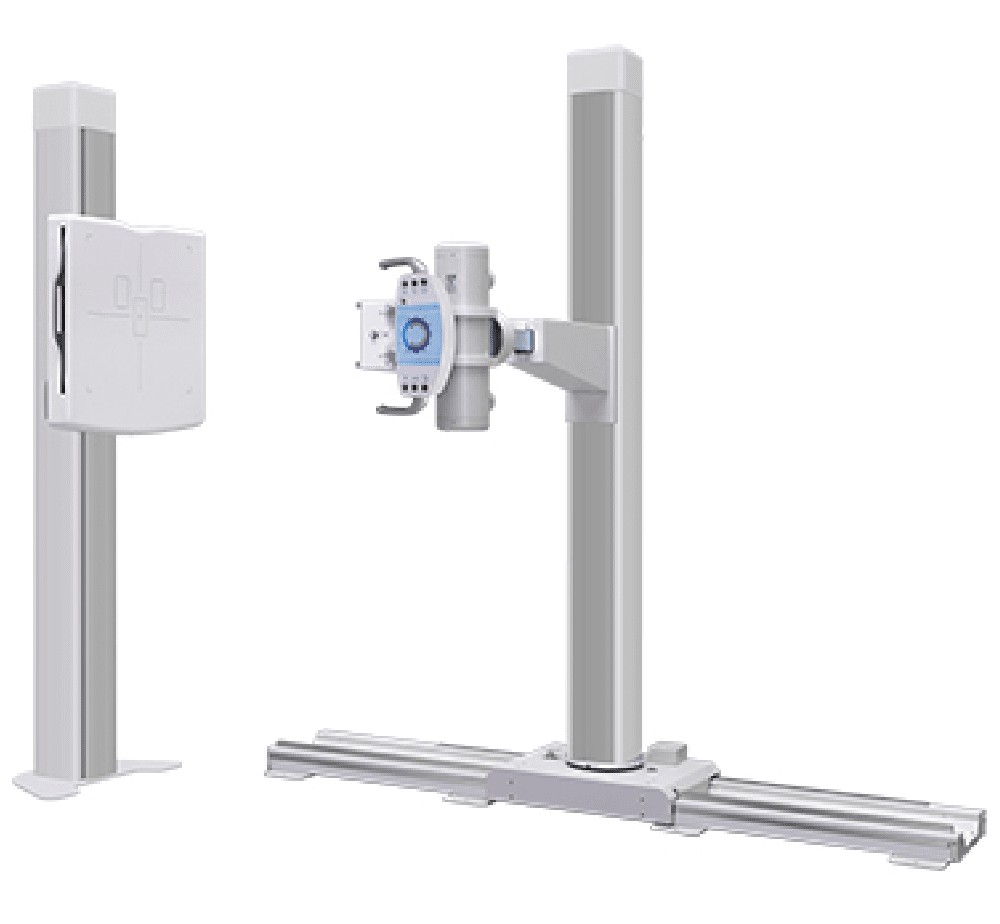

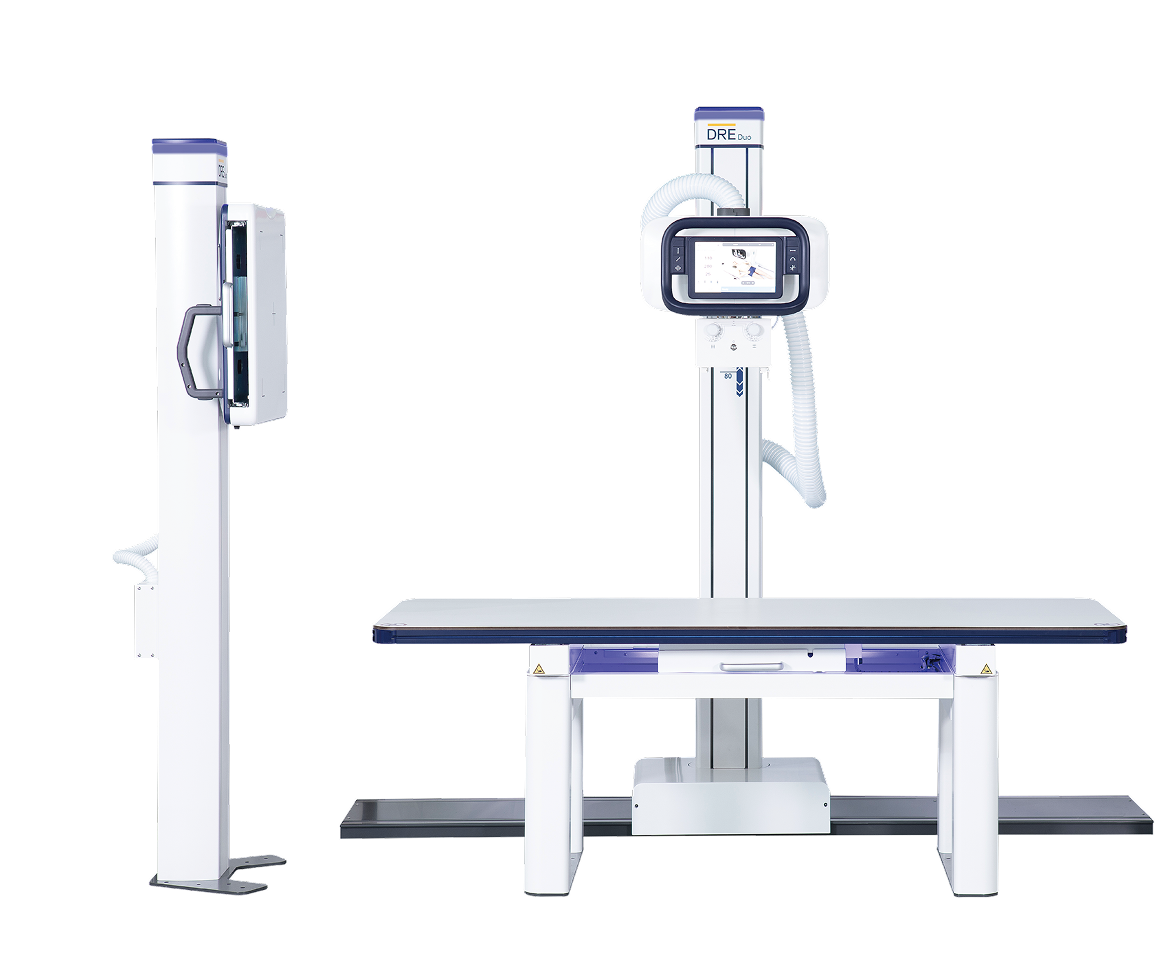

Bucky Stand, Tube stand(floor mounted or floor ceiling),

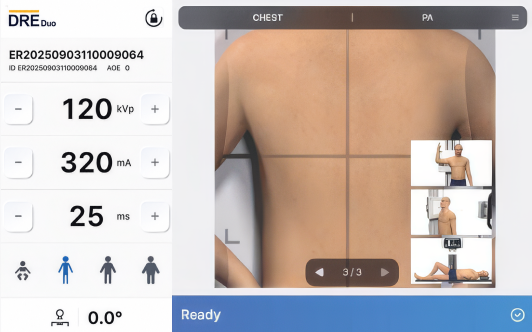

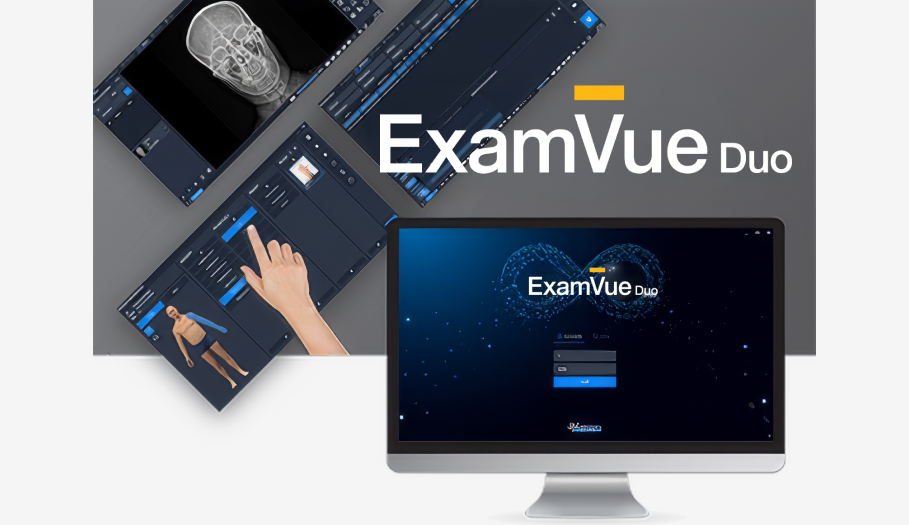

Generator, PC&Monitor, Acquire software, Flat Panel Detector, Collimator
; ?>){kind=spacer}

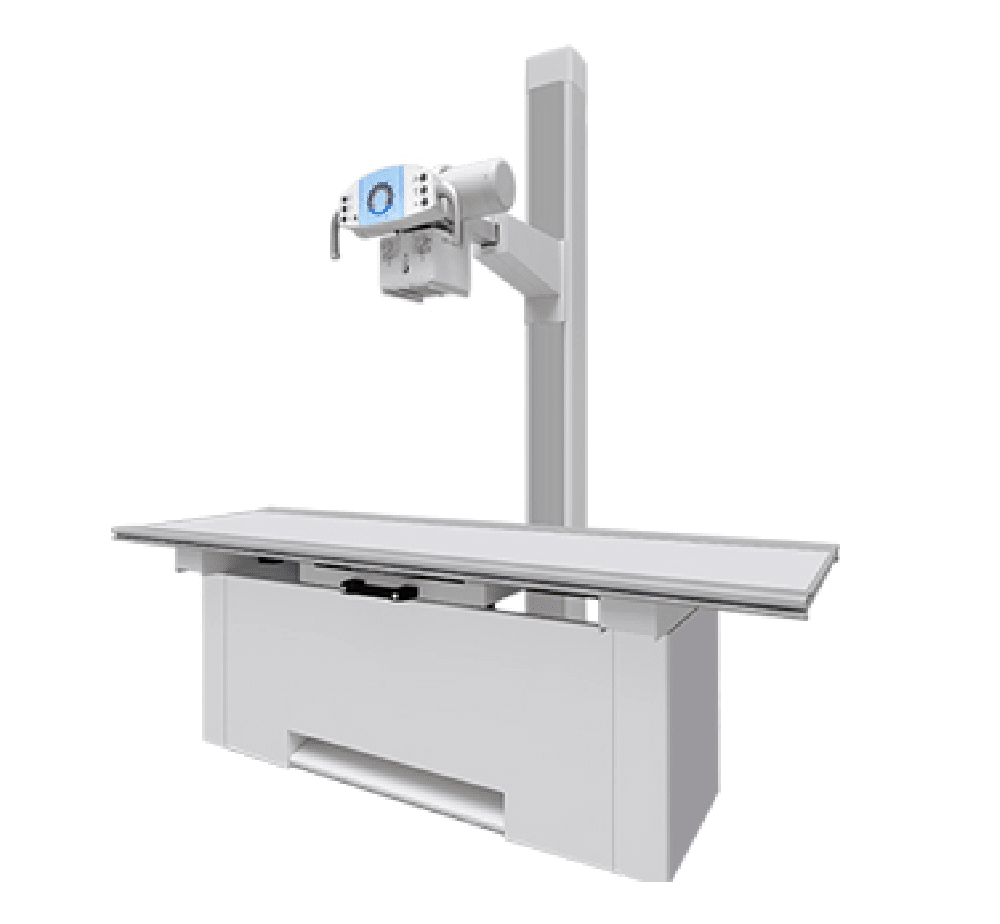

4way Bucky table, Tube stand(floor mounted or floor ceiling),
Generator, PC&Monitor, Acquire software, Flat Panel Detecor, Collimator
; ?>){kind=spacer}

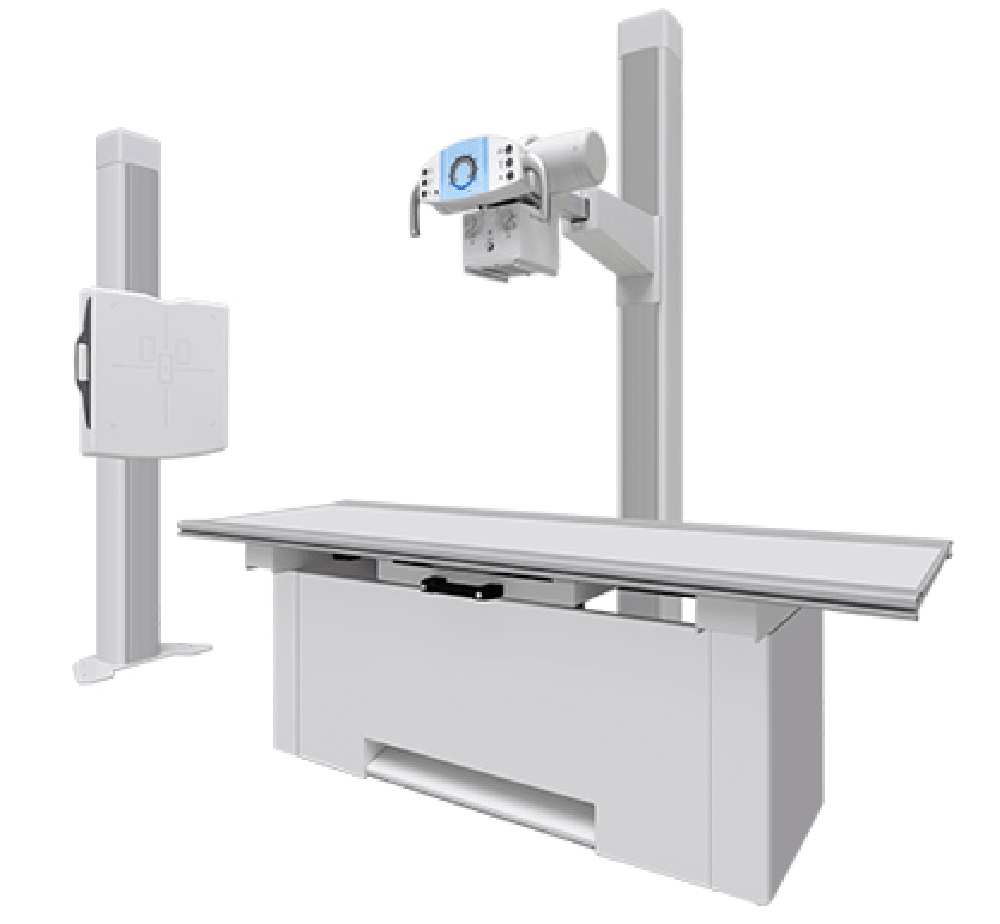

4Way Bucky table, Bucky stand, Tube stand(floor mounted or floor ceiling), Generator, PC&Monitor, Acquire software, Flat Panel Detecor, Collimator

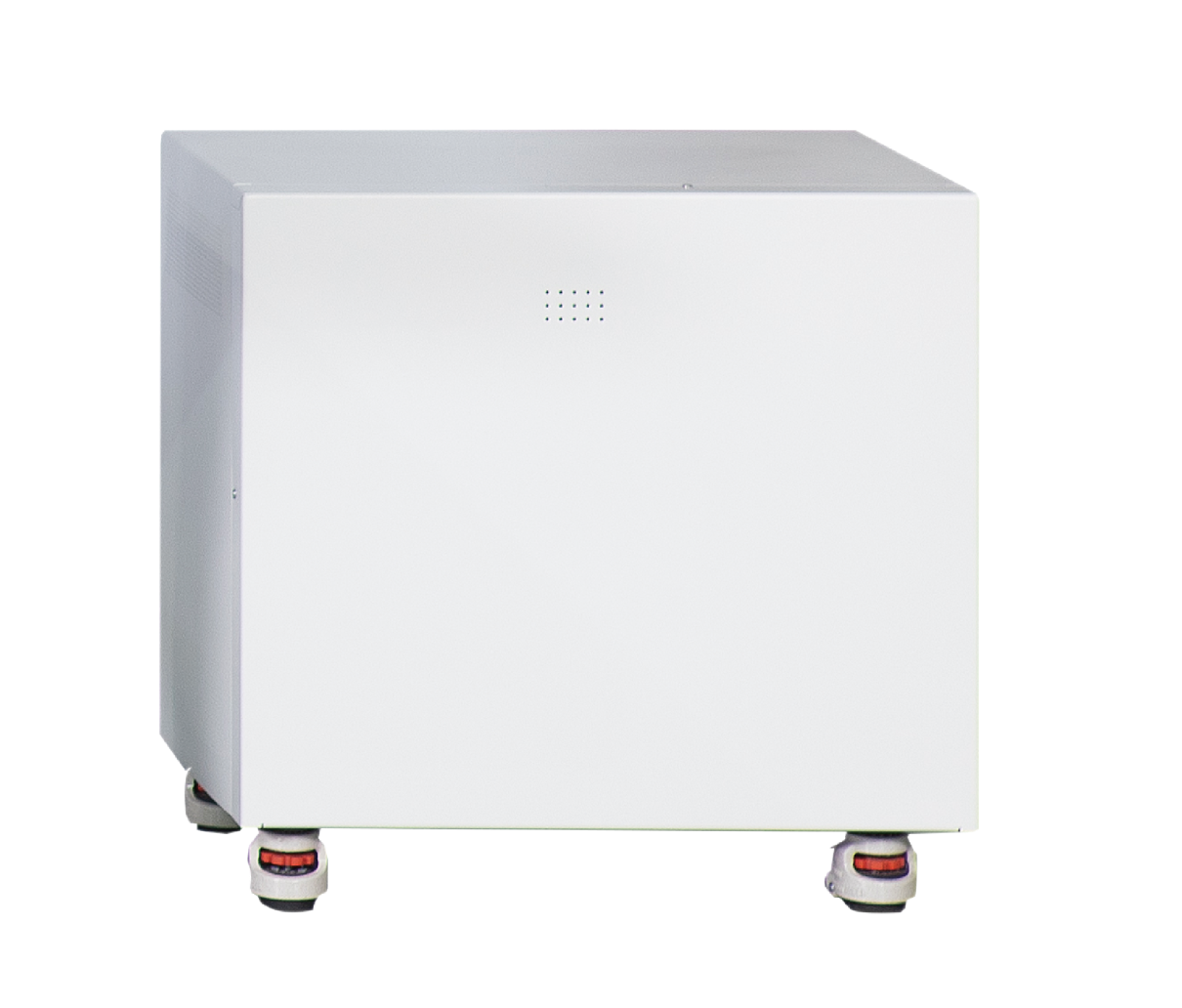

| Generator | DRE 140 |
|---|---|
| Max. Output | 10 ~ 500mA |
| kV Range | 40 ~ 125kV |
| mAs Range | 0.4 ~ 630mAs |
| Power Supply | 1Ø 220VAC 50/60Hz |
| Exposure Time | 0.01 ~ 10sec |
| No. of APR | 1080 |
| Option | AEC |
| X-ray Tube | DRE 140 |
|---|---|
| Focal Spot | 1.0/2.0mm |
| Anode Heat Capacity | 100kJ (140kHU) |
| Target Angle | 16° |
| Voltage Aange | 40 - 125kV |
| Weight/th> | 16kg |
| Permanent Filtration | 0.9mmAl |
| Collimator | DRE 140 |
|---|---|
| Power Consumption | 24VAC, 7A |
| Max. kVp Shield | 150kV |
| Max. Field Size | 48 x 48cm at SID 100cm |
| Light Projection | more than 160 Lux at SID 100cm |
| Inherent Protection | 1.2mm AI equivalent |
| Radiation Protection | less than 30mr/hr at 100cm from x-ray tube focal spot |
| Lamp Timer | push button, 30 second timer |

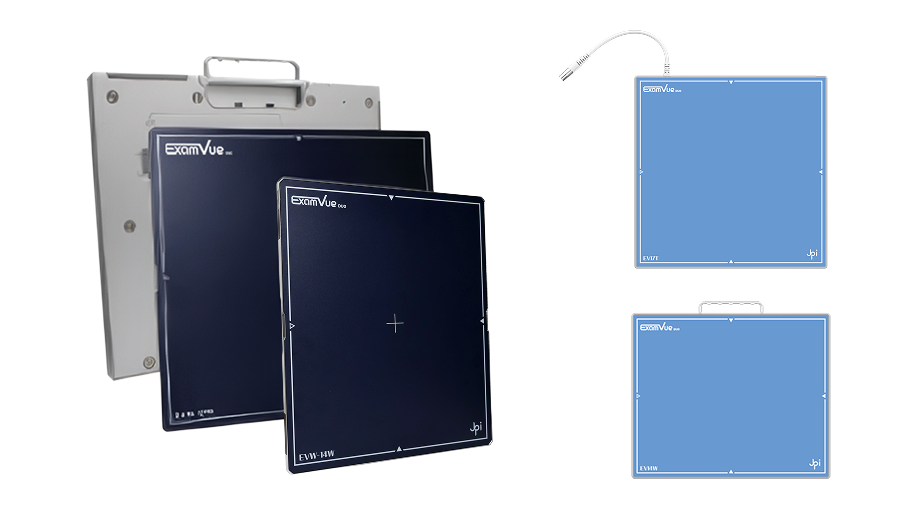

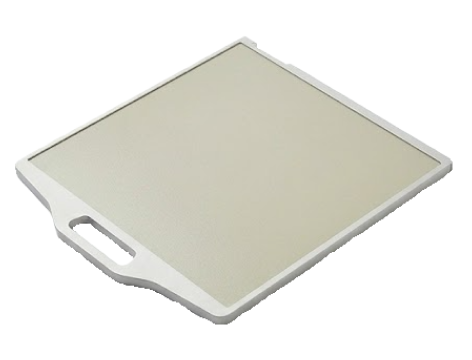

| Flat Panel Detector | DRE 140 |
|---|---|
| For digital imaging solution, please contact JPI’s regional sales manager. |
